lndustrial all-round label printers for printing barcodes, fonts and graphics in high quality!

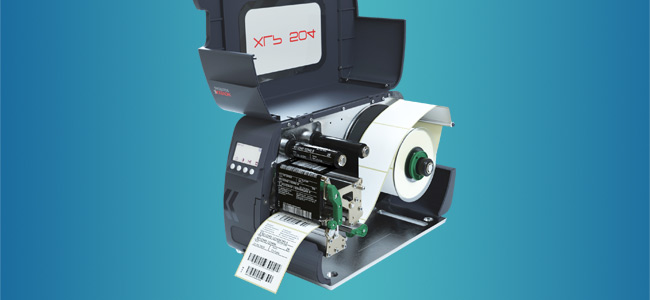

The XLP 50x Label Printer series is the perfect print solution for medium label volume applications, available in 4 and 6 inch print width. lt can be used with thermal transfer or thermal direct technology and prints high quality barcodes, fonts, and graphics on a large variety of label materials: (coated) papers, PE/PP or cardboard. Due to its flexibility the XLP 50x is ready for numerous applications and will support your identification and traceability processes, mainly related to primary and secondary packaging in the following industries:
|Model||XLP 504||XLP 506|
|PRINTING METHOD||Thermal direct/thermal transfer|
|Print resolution (dpi)||203 dpi
|Time per 1,000 labels in min||203 dpi - 7 min.
300 dpi - 9 min.
600 dpi - 17 min.
|203 dpi - 9 min.
300 dpi - 11 min.
|Label width||15 to 120 mm||50 to 185 mm|
|Label width w./Dispenser||30 to 110 mm||n/a|
|Label Type||Converted, self-adhesive label material on roll or fan folded: paper, thermal transfer/direct, plastic film material (e.g. PE, PP, PA, PVC)|
|RIBBON SIZE (Length)||max. 500 m||max. 500 m|
|RIBBON SIZE (Width)||25 to 110 mm<||54 to 172 mm|

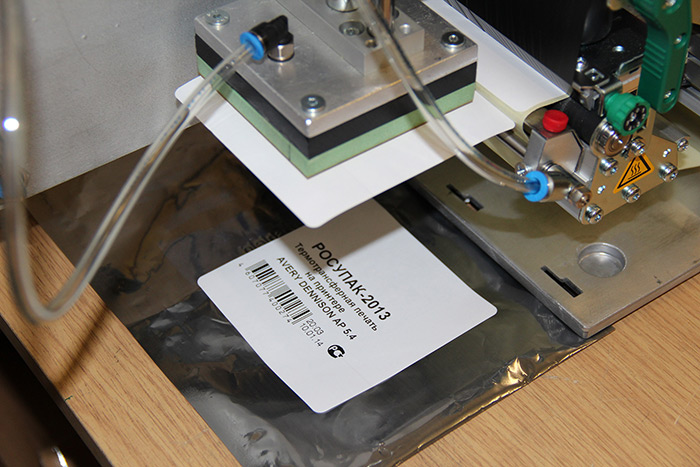

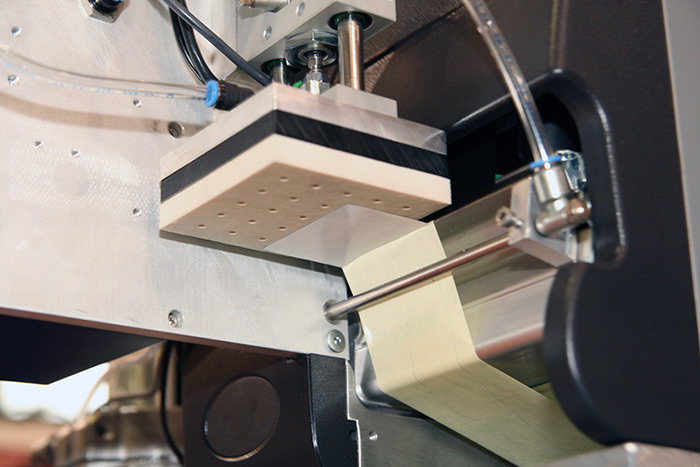

Video №1 Description »The printer-applicator of labels on the basis of the thermal transfer printer NOVEXX XLP 504 allows you to pre-print the label completely or to put on it the necessary variable information, bar code, QR code. After printing, the finished label is applied to the product automatically (using a product sensor) or semi-automatically (using the "start" pedal).
