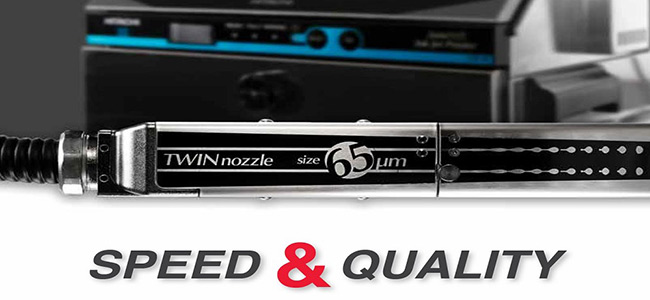

Higher Print Speeds
Having two nozzles dramatically increases the speed of multi-line printing. Traditional, single nozzle print heads become taxed very quickly when printing multiple lines of print especially at speed. By sharing the work load between two separate nozzles, this effect is greatly reduced.

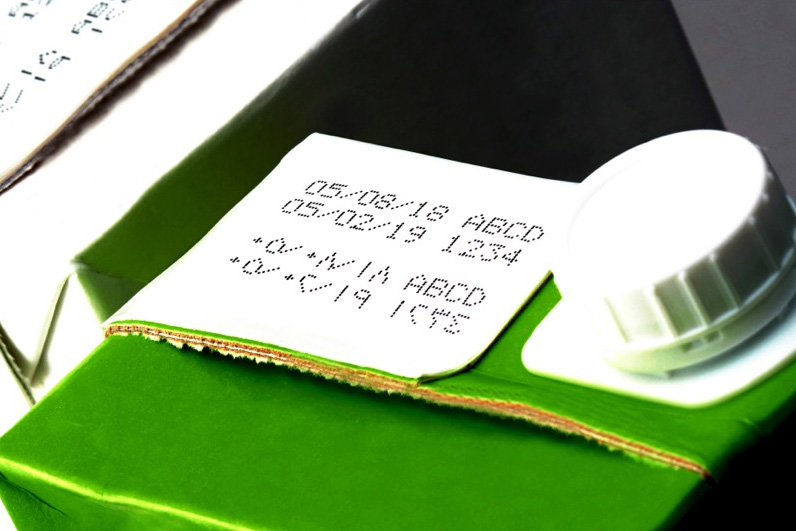

Flexible 8-Line Print

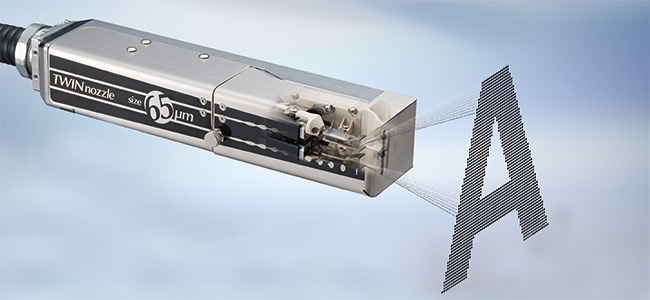

Our print head now has the capability of producing 8 lines of text by utilizing two individual nozzles in one, compact design. In addition, by utilizing Hitachi’s original “interlaced” print control technique, multiple line messages are printed clearly and legibly, further reducing coding errors due to misprint.
Hitachi's innovative design can now produce 64 vertical dots of print resulting in large, bold characters. This makes our twin nozzle printer ideally suited to mark company logos or any other pattern previously unachievable with traditional print heads.
Character Stitch Capability
A unique option in our new twin-nozzle printer is the ability to stitch both nozzles together. The results of character stitching are characters that are bigger and bolder than even before achievable with single nozzle printers. This is particularly useful when character recognition is needed at a distance from the product.
|Nozzle size||65 μm|
|Max.print line number||Up to 6 lines|
|Maximum number of print characters||Up to 1,000 characters|
|Font (Horizontal × vertical)||4×5,
7×10, 11×11(Chinese only),
|Character height||2-10 mm / 0.08-0.39 inches|

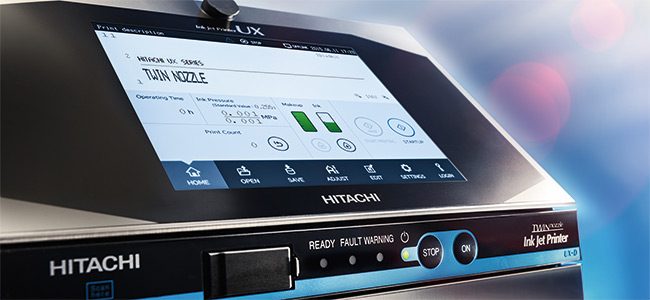

|Display & input device||WYSIWYG design; Display: TFT LCD (10.4" color), backlight provided; Input device: Touch panel, input sound provided.|
2 languages selectable
|English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish, Portuguese, Swedish, Danish, Greek, Russian, Czech, Polish, Arabic, Serbian, Turkish, Hungarian, Bulgarian, Catalan, Romanian, Finnish, Norwegian available|
|Maximum print rate (character/s)
(Font 5×5, space1, 1 Line)
|Up to 2,083 (Ink : JP-W89)|
|Standard characters||Alphanumeric (A-Z, a-z, 0-9), symbols(27), space : total 90|
|User pattern||Each dot matrix 200 patterns (30 × 40, 36 × 48 : 50 characters)|
|Print function||Calendar, Count, Font mixture, Password security, etc.|
|Barcode printing||code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar|
|2D code printing||Data Matrix , QR code, Micro QR|
|Message storage capacity||Up to 2,000 messages (depends on data content)|
|Input signal||Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing, Remote control (Run, Stop, High-voltage ON/OFF, Reset), (NPN/PNP Selectable)|
|Output signal||Print in progress or Print complete, Online (NPN/PNP Selectable), Print ready, Fault, Warning (NPN Only)|
|Data interface||RS-232C at baud rates selectable up to 115,200bps (Option: Ethernet)|
|External memory||USB for user data storage|
|Head cable length / angle||4m / 13.1ft, inline / 90 degrees|
|Operating temperature range||0-40ºC / 32-104ºF (Ink : JP-W89)|
|Humidity range||30-90% R.H. (no condensation)|
|Power supply (Automatic voltage selection)||AC100-120/220-240V±10% 50/60Hz 120VA (AC Inlet)|
|Approval||CE, UL, cUL, C-Tick, FCC, ICES|
|Overall size (width×depth×height)||400x320x527mm / 15.7x12.6x20.8 inches|
|Environmental protection||IP 55|
|Approximate weight||27kg / 60lbs|
